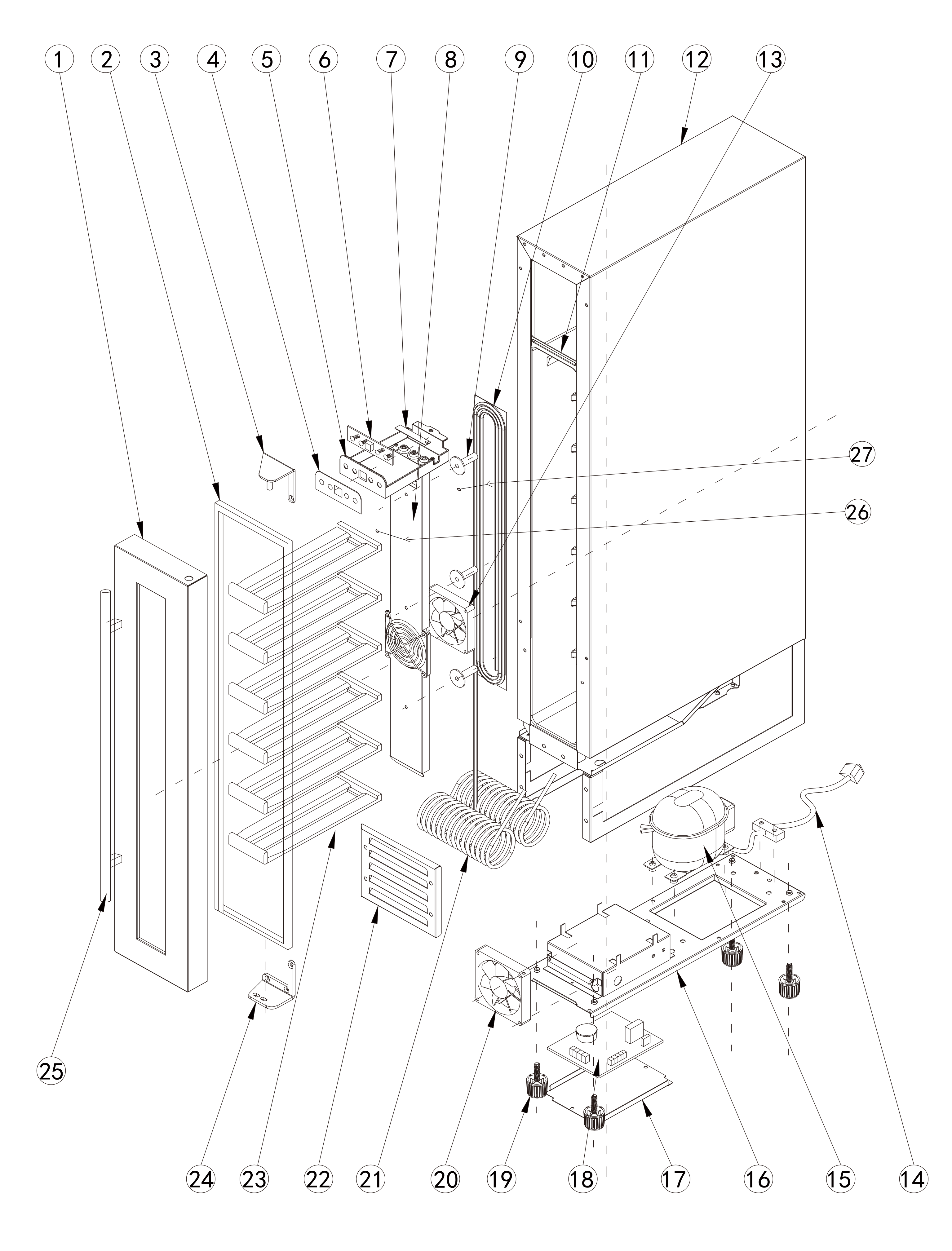

Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| -1 | 1.4.0320.0401
GLASS DOOR | Low Stock | 49.99 | |
| -10 | 1.1.0220.0165
EVAPORATOR | Not Available | ||
| -13 | 1.3.0620.0004
INNER FAN | In Stock | 9.99 | |
| -14 | 1.3.0220.0041
POWER CORD | Low Stock | 12.49 | |
| -15 | 1.3.0100.0115
COMPRESSOR | Not Available | ||
| -16 | 1.1.0320.0527
COMPRESSOR BASE | Not Available | ||
| -17 | 1.1.0820.0100
POWER BOARD PROTECTIVE COVER | Low Stock | 3.99 | |
| -18 | 1.3.0420.0101
POWER BOARD | In Stock | 24.99 | |
| -19 | 1.2.0520.0003
FOOT | In Stock | 3.99 | |
| -2 | 1.2.0320.0063
DOOR SEAL | Low Stock | 14.99 | |
| -20 | 1.3.0620.0035
OUTER FAN | Low Stock | 9.99 | |
| -21 | 1.1.0220.0151
CONDENSER | Not Available | ||
| -22 | 1.1.0320.0481
BASE GRILLE | Low Stock | 9.99 | |
| -23 | 1.5.0120.0216
WOODEN SHELF | In Stock | Contact Us | |
| -24 | 1.1.0520.0014
RIGHT LOWER HINGE | In Stock | 12.99 | |
| -25 | 1.1.0720.0055
HANDLE | In Stock | 18.99 | |
| -26&27 | 1.3.0320.0167
AIR THERMISTOR | In Stock | 10.99 | |
| -3 | 1.1.0520.0219
RIGHT UPPER HINGE | Low Stock | Contact Us | |
| -4 | 1.6.0720.0221
CONTROL PANEL STICKER | Low Stock | 3.99 | |
| -5 | 1.2.0620.0013
CONTROL PANEL COVER | Low Stock | 3.99 | |
| -6 | 1.3.0420.0102
CONTROL PCB | Low Stock | 14.99 | |
| -7 | 1.3.0520.0041
LED LAMP BOARD | On Order | 9.99 | |
| -8&9 | 1.1.0820.0099
AIR DUCT ASSY | Not Available | ||
| -Accessory | 1.1.0520.0018
LEFT LOWER HINGE | Low Stock | 6.99 | |
| -Accessory | 1.1.0520.0222
LEFT UPPER HINGE | Not Available | ||
Product Functions
The Viceroy+ 15cm black wine cooler in Black is the most compact model in the Viceroy wine cooler range, designed to store up to seven bottles in the space of a single kitchen base unit. It installs neatly under a standard worktop alongside existing cabinets, or stands freestanding in a kitchen, utility room or dining space- giving you flexibility over where it goes and how you use it.
A single cooling zone maintains a consistent temperature between 5 and 22 degrees Celsius, covering the ideal serving and short-term storage range for still wines, sparkling and rosé. UV-protected toughened glass is fitted as standard- UV light is one of the primary causes of premature wine deterioration, and protecting your bottles from light exposure preserves flavour, colour and aroma over time.
Beech wood shelves accommodate standard 750ml Bordeaux, Burgundy and Champagne bottles, and the white LED interior lighting makes it easy to browse your selection without disturbing neighbouring bottles. Touch controls with a red LED display allow precise temperature setting, and the reversible door can be switched from right to left-hand opening to suit your kitchen layout. Maximum noise of just 41dB means this cooler runs quietly even in open living spaces.
