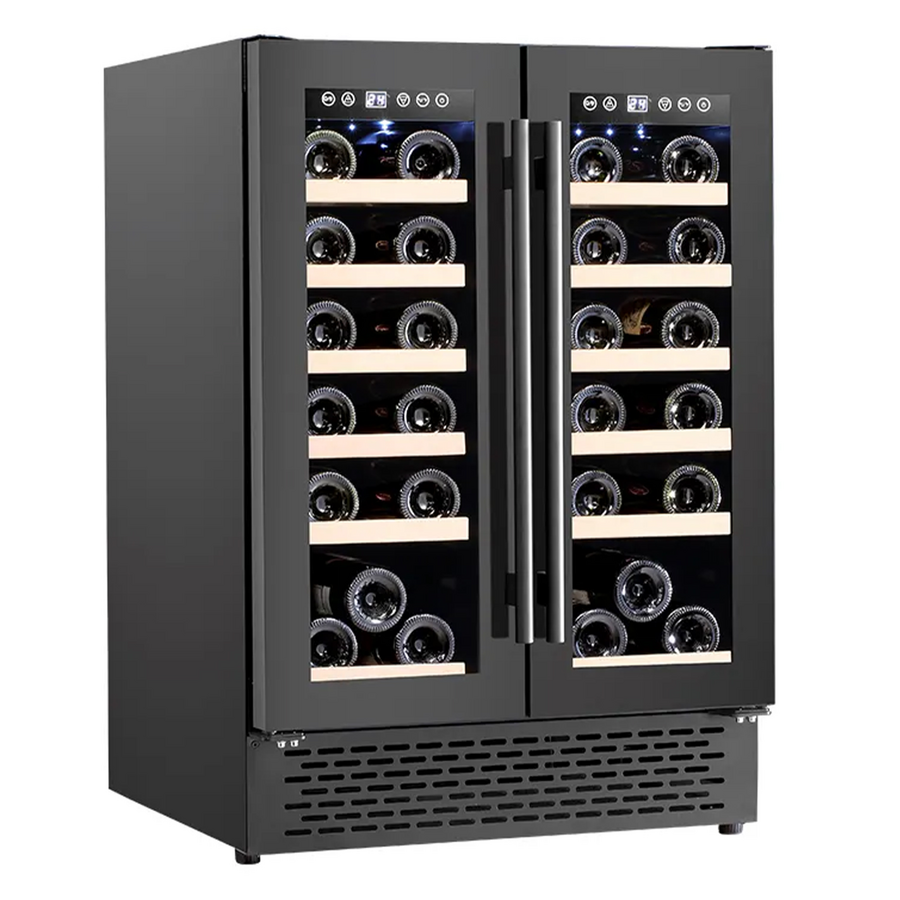

60CM TWIN DOOR BLACK BUILT UNDER WINE COOLER (F RATED)
WRBKWC60DDF

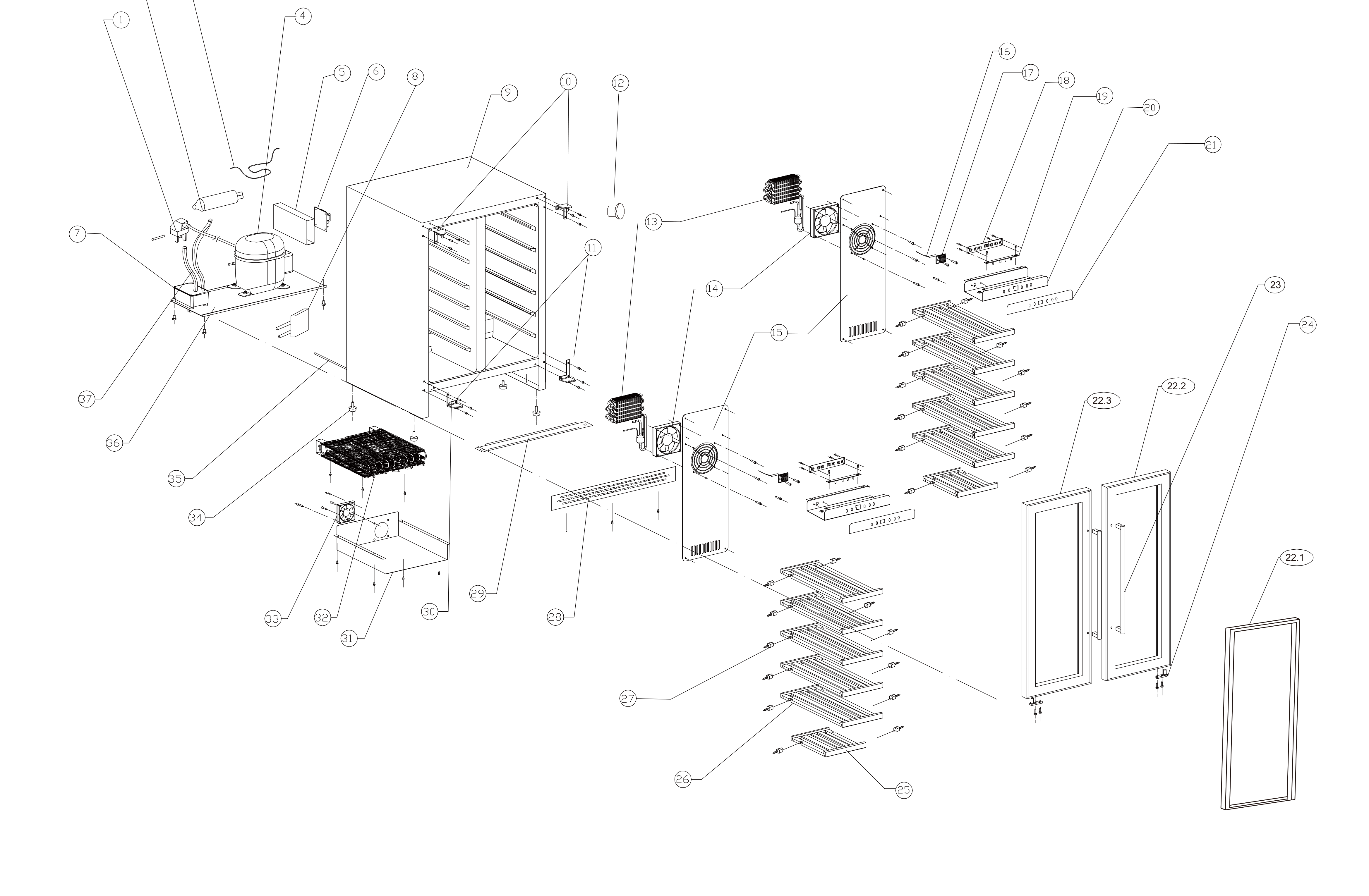

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1.1.0520.0610
LEFT UPPER HINGE | Not Available | |||
| 1.3.0420.0098
CONTROL PCB - B | On Order | Contact Us | ||
| 1 | 1.3.0220.0041
POWER CORD | Low Stock | 12.49 | |
| 2 | 1.1.0220.0065
DRY FILTER | Low Stock | Contact Us | |
| 3 | 1.1.0220.0249
CAPILLARY | Not Available | ||
| 4 | 1.3.0100.0063
COMPRESSOR ASSY | On Order | 60.00 | |
| 5 | 1.2.0520.0011
POWER BOARD PROTECTIVE COVER | Low Stock | 4.99 | |
| 6 | 1.3.0420.0090
POWER BOARD | In Stock | Contact Us | |
| 7 | 1.2.0520.0024
WATER DRIP TRAY | Low Stock | 3.99 | |
| 8 | 1.3.0420.0436
SOLENOID VALVE | Not Available | ||
| 10 | 1.1.0520.0606
RIGHT UPPER HINGE | Not Available | ||
| 11 | 1.1.0520.0608
RIGHT LOWER HINGE | On Order | Contact Us | |
| 12 | 1.2.0520.0402
FILTER CARBON BOX | Low Stock | 15.99 | |
| 13 | 1.1.0220.0210
EVAPORATOR | Not Available | ||
| 14 | 1.3.0620.0001
INTERIOR FAN MOTOR | In Stock | 19.99 | |
| 15 | 1.2.0220.0024
AIR DUCT | Not Available | ||
| 16 | 1.3.0320.0267
TEMPERATURE SENSOR | In Stock | Contact Us | |
| 17 | 1.2.0520.0022
TEMPERATURE SENSOR COVER | Low Stock | 3.99 | |
| 18 | 1.3.0420.0097
CONTROL PCB - A | On Order | Contact Us | |
| 19 | 1.3.0520.0024
LED LAMP BOARD | On Order | 8.99 | |
| 20 | 1.2.0620.0021
ELECTRICAL BOX | Low Stock | Contact Us | |
| 21 | 1.6.0720.0275
CONTROL PANEL STICKER | In Stock | Contact Us | |
| 22.1 | 1.2.0320.0113
DOOR SEAL | Not Available | ||
| 22.2 | 1.4.0320.0608
GLASS DOOR ?RIGHT DOOR HINGE) | Low Stock | 119.99 | |
| 22.3 | 1.4.0320.0701
GLASS DOOR ?LEFT DOOR HINGE) | Not Available | ||
| 23 | 1.1.0720.0055
HANDLE | In Stock | 18.99 | |
| 24 | 1.1.0520.0005
DOOR SHAFT ASSEMBLY | In Stock | 4.99 | |
| 25 | 1.5.0120.0075
BOTTOM SHELF | In Stock | Contact Us | |
| 26 | 1.5.0120.0074
WOODEN SHELF | In Stock | 19.99 | |
| 27 | 1.2.0520.0038
SHELF LIMIT COLUMN | Low Stock | 3.99 | |
| 28 | 1.1.0320.0383
BASE GRILLE | On Order | 17.49 | |
| 29 | 1.1.0320.0065
BOTTOM BRACKET | Not Available | ||
| 30 | 1.1.0520.0612
LEFT LOWER HINGE | Low Stock | 6.99 | |
| 31 | 1.1.0320.0779
CONDENSER COVER | Not Available | ||
| 32 | 1.1.0220.0025
CONDENSER | Not Available | ||
| 33 | 1.3.0620.0058
EXTERIOR FAN MOTOR | Not Available | ||
| 34 | 1.2.0520.0003
LEVELING LEG | In Stock | 3.99 | |
| 35 | 1.1.0220.0079
SUCTION PIPE | Not Available | ||
| 36 | 1.1.0320.0181
COMPRESSOR BASE | Not Available | ||
| 37 | 1.1.0220.0007
EXHAUST PIPE | Not Available | ||
Technical Specifications
Energy Rating
Display Type
Temperature Controls
Interior Light
Shelf Type
Adjustable Shelves
Bottle Capacity
Temperature Range
Dimensions Unpacked
Dimensions Packed
Reversible Door
Weight Packed
Weight Unpacked
Noise Level
Connectivity Type
Description
