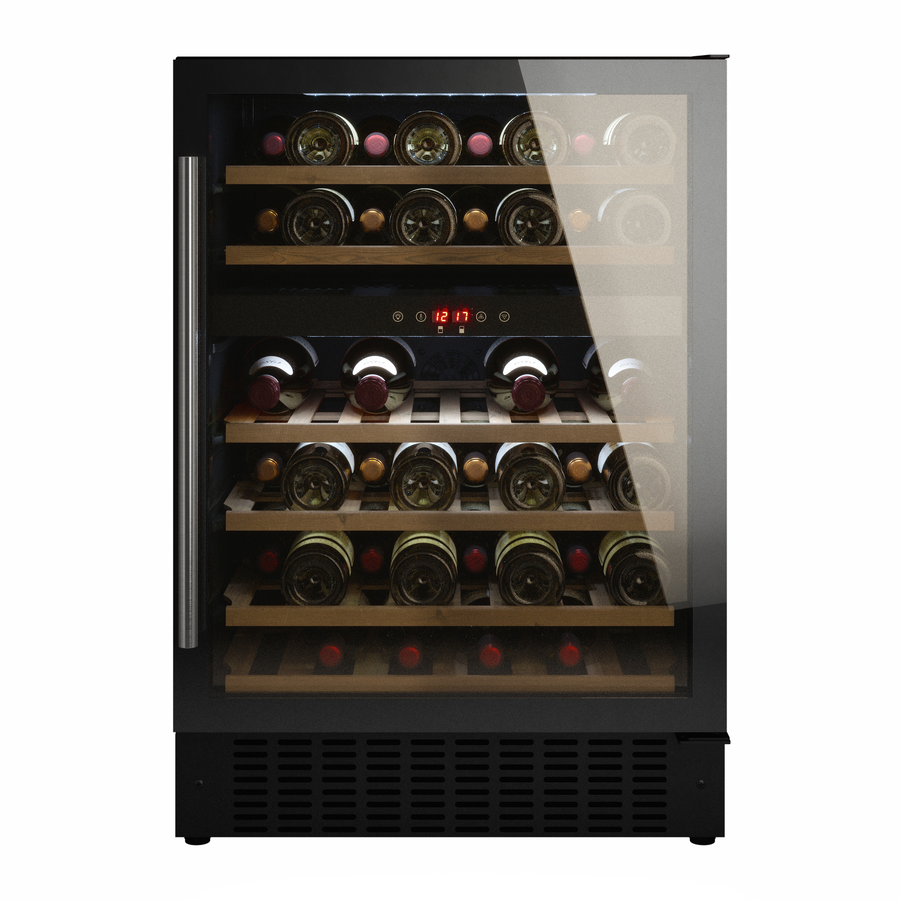

H870xW595xD570 Under Counter Wine Cooler (Eco Design)
WRWC60BKED

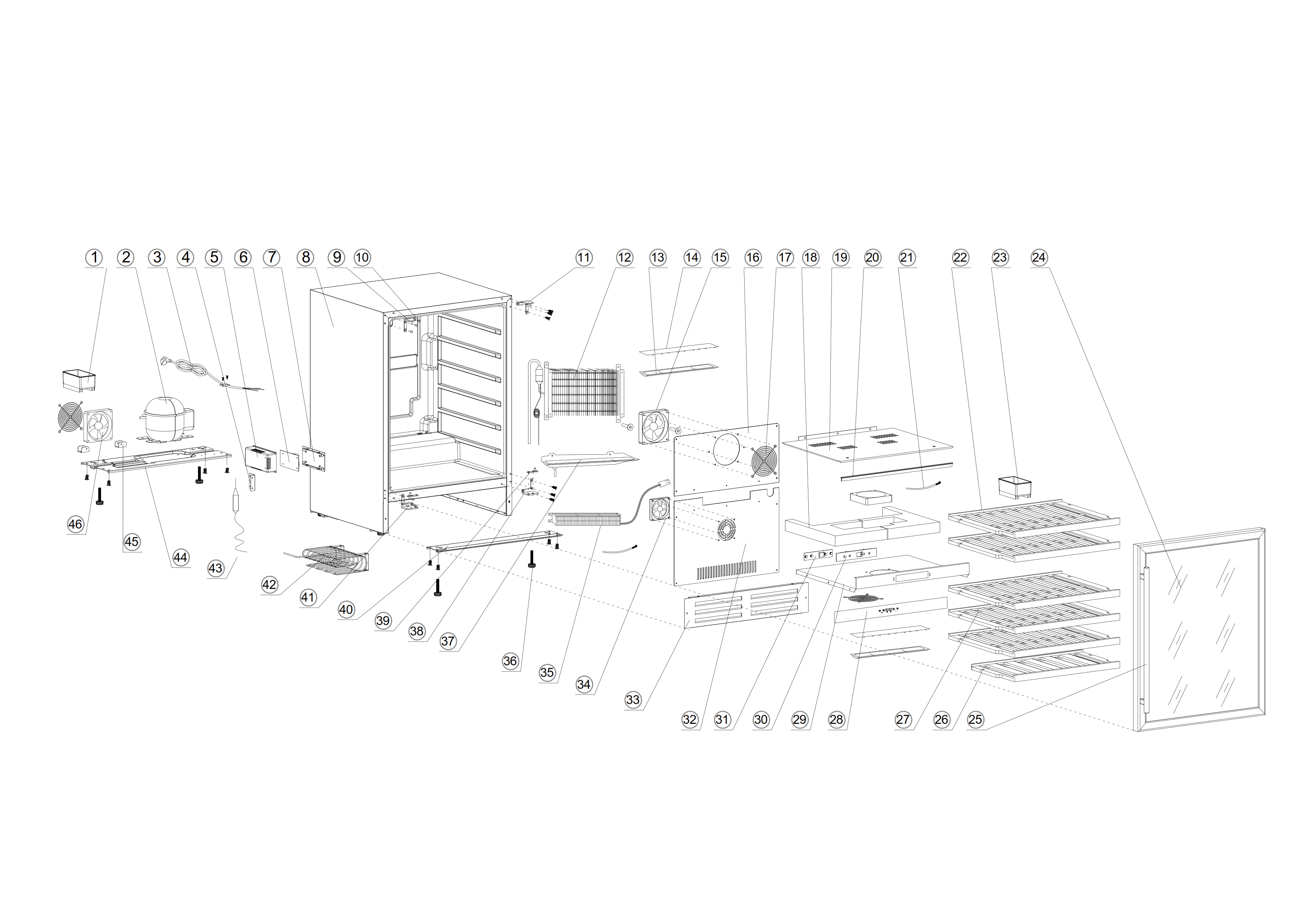

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 1 | 302011170
WATER TANK | Not Available | ||
| 2 | 3.02.06.0876
COMPRESSOR | Not Available | ||
| 3 | 3.02.05.1491
POWER CORD | Low Stock | Contact Us | |
| 4 | 621116006A
PCB BRACKET | Not Available | ||
| 5 | AA0000001748
PCB BOX | Low Stock | Contact Us | |
| 6 | 3.02.05.1408
POWER PCB | In Stock | 62.99 | |
| 7 | AA0000001750
PCB BASE | Low Stock | 5.99 | |
| 8 | 2.02.01.2517
CABINET | Not Available | ||
| 9 | 3.02.01.2474
HOLE BLOCKAGE | In Stock | 3.99 | |
| 10 | 302011128A
SHELF LIMIT COLUMN | Not Available | ||
| 11 | 3.02.02.1915
FIXED BRACKET | Low Stock | 4.99 | |
| 12 | 3.02.02.0397
RT UPPER HINGE | In Stock | Contact Us | |
| 12 | 302082101
RT UPPER HINGE | Low Stock | 6.99 | |
| 13 | 3.02.06.0354
EVAPORATOR | Not Available | ||
| 14 | 302010864A
LAMP COVER | In Stock | Contact Us | |
| 15 | 3.02.05.0096
LAMP PCB | In Stock | 4.99 | |
| 16 | 302.05.0179B
INNER FAN | In Stock | 19.99 | |
| 17 | 302.08.0456A
UPPER AIR DUCT | Not Available | ||
| 18 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
| 19 | 3.02.03.6853
SPACER POLYFOAM | Not Available | ||
| 20 | 3.02.08.0193
SPACER COVER | Not Available | ||
| 21 | 3.02.01.0267
SPACER FIXED STRIP | Not Available | ||
| 22 | 302050100B
SENSOR | In Stock | 10.99 | |
| 23 | 3.02.01.0264
WATER DRIP TRAY | On Order | 5.99 | |
| 24 | 3.02.02.2754
TOP SHELF | In Stock | Contact Us | |
| 25 | 2.02.06.1809
GLASS DOOR | Low Stock | 59.99 | |
| 26 | AA0000001760
S/S HANDLE | On Order | 14.99 | |
| 27 | 3.02.01.1065
DOOR SEAL | Low Stock | 17.99 | |
| 28 | 3.02.02.2752
BOTTOM SHELF | In Stock | Contact Us | |
| 29 | 3.02.02.2753
MIDDLE SHELF | In Stock | Contact Us | |
| 30 | 3.02.03.A451
CONTROL PANEL STICKER | In Stock | Contact Us | |
| 31 | 3.02.08.1043
SPACER BASE | Not Available | ||
| 32 | 302010236A
CONTROL PCB | In Stock | 6.99 | |
| 33 | 3.02.05.1541
CONTROL PCB | On Order | Contact Us | |
| 34 | 302.08.0458A
LOWER AIR DUCT | Not Available | ||
| 35 | 3.02.08.2754
BASE GRILLE | In Stock | 19.50 | |
| 36 | 3.01.05.0189
SMALL INTERIOR FAN | Low Stock | 19.99 | |
| 37 | 3.02.05.0045
PTC HEATING ELEMENT | Low Stock | 32.99 | |
| 38 | 3.02.01.0452
FOOT | In Stock | 6.99 | |
| 39 | 3.02.01.1170
WATER DRIP TRAY | Not Available | ||
| 40 | 302020102B
RT LOWER HINGE | In Stock | 6.99 | |
| 40 | 302020102B
RT LOWER HINGE | Low Stock | 6.99 | |
| 41 | 3.02.08.1038
BOTTOM BRACKET | Not Available | ||
| 42 | 3.02.06.0128
CONDENSER | Not Available | ||
| 43 | 3.02.06.0325
DRY FILTER | Not Available | ||
| 44 | 3.02.06.1123
COMPRESSOR FREQUENCY CONVERSION BOX | Not Available | ||
| 45 | 3.02.08.2143
COMPRESSOR BASE | Not Available | ||
| 46 | 3.02.08.2086
FAN SUPPORTER | In Stock | 3.50 | |
| 47 | AA0000001764
OUTER FAN | In Stock | 20.99 | |
| 48 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
Product Design
- Colour: Black
- Fitting: Free Standing Under Counter
- Touch Controls
- UV Protected Double Glazed Door
Technical Specifications
Energy Rating
G
G
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
46
46
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
595x570x870mm
595x570x870mm
Dimensions Packed
660x625x930mm
660x625x930mm
Reversible Door
Yes
Yes
Weight Packed
50kg
50kg
Weight Unpacked
45kg
45kg
Noise Level
44dB
44dB
Connectivity Type
Cable with Plug
Cable with Plug
Description
With our larger capacity 600mm Wine Cooler you can store up to 46 bottles of your favourite wine and you have the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
