H870xW148xD570 Under Counter Wine Cooler (Eco Design)
WRWC15SSED

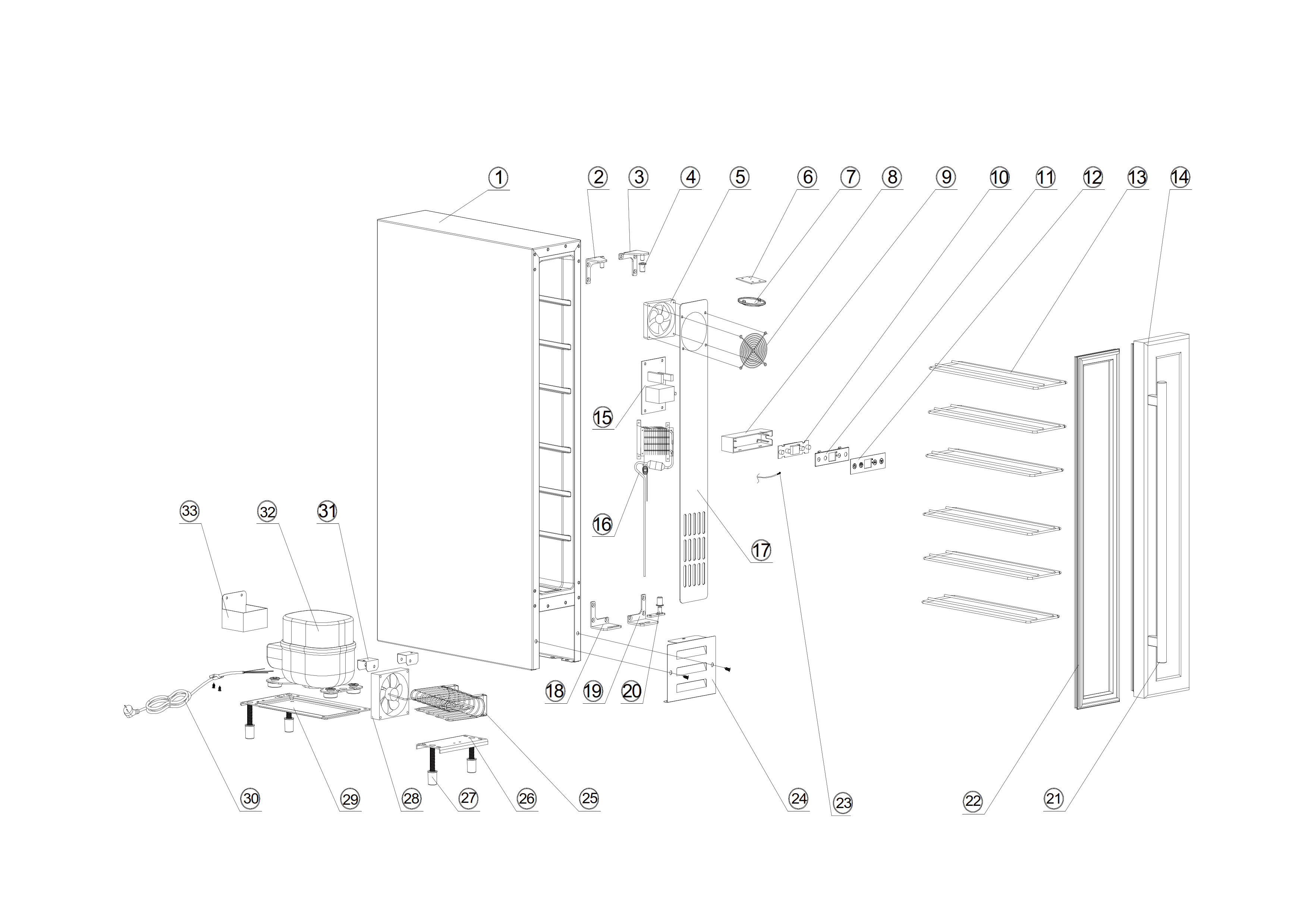

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 2.02.01.2098B
CABINET | Not Available | |||
| 3.01.01.0048
LAMP COVER | In Stock | 9.99 | ||
| 3.01.01.0198
MAGNETIC DOOR SEAL | In Stock | 22.99 | ||
| 3.01.01.0812
CONTROL PANEL BOX 2012 | In Stock | 13.99 | ||
| 3.01.05.0071
LAMP PCB | Low Stock | 13.99 | ||
| 3.02.01.0191
DOOR HINGE COVER | In Stock | 6.99 | ||
| 3.02.01.0452
FOOT | In Stock | 6.99 | ||
| 3.02.01.2518
AIR DUCT | Not Available | |||
| 3.02.02.0096
FAN SUPPORTER | Not Available | |||
| 3.02.02.0102B
RT LOWER HINGE | In Stock | 6.99 | ||
| 3.02.02.0103B
DOOR SHAFT ASSEMBLY | In Stock | 6.99 | ||
| 3.02.02.0105B
LF LOWER HINGE | In Stock | 6.99 | ||
| 3.02.02.0167
FAN GUARD | In Stock | 6.99 | ||
| 3.02.02.0379C
LF UPPER HINGE | In Stock | 6.99 | ||
| 3.02.02.0397C
RT UPPER HINGE | In Stock | Contact Us | ||
| 3.02.05.0100B
SENSOR | In Stock | 10.99 | ||
| 3.02.05.0838
UK POWER CORD | In Stock | 10.99 | ||
| 3.02.05.1458
CONTROL PCB | In Stock | 19.99 | ||
| 3.02.06.0750
EVAPORATOR | Not Available | |||
| 3.02.06.0756
CONDENSER | Not Available | |||
| 3.02.06.1050
COMPRESSOR | Not Available | |||
| 3.02.08.0681
WATER TANK | In Stock | 5.99 | ||
| 3.02.08.1842
BASE GRILLE | In Stock | Contact Us | ||
| 3.02.09.2478
STAINLESS STEEL GLASS DOOR | Low Stock | 54.99 | ||
| 3.01.01.0890A
CONTROL PANEL COVER | Low Stock | Contact Us | ||
| 3.01.03.3964B
CONTROLPANELSTICKER2012 | Low Stock | Contact Us | ||
| 3.01.05.0189C
INNER FAN | In Stock | 19.99 | ||
| 3.02.02.0870A
WOODEN SHELF | In Stock | 11.99 | ||
| 3.02.05.0261E
POWER PCB | In Stock | 49.99 | ||
| 3.02.05.0343A
OUTER FAN | In Stock | 20.99 | ||
| 3.02.08.0830B
COMPRESSOR BASE | Not Available | |||
| 3.02.02.0273A
S/S HANDLE | Low Stock | 14.99 | ||
| 3.02.08.0811B
BOTTOM BRACKET | Low Stock | 8.99 | ||
Functions
- Height Adjustable Feet
- Reversible Door
- LED Lighting
- LED Temperature Display
Technical Specifications
Energy Rating
G
G
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
7
7
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
148x520x870mm
148x520x870mm
Dimensions Packed
190x570x890mm
190x570x890mm
Reversible Door
Yes
Yes
Weight Packed
20.5kg
20.5kg
Weight Unpacked
18.5kg
18.5kg
Noise Level
39dB
39dB
Connectivity Type
Cable with Plug
Cable with Plug
Description

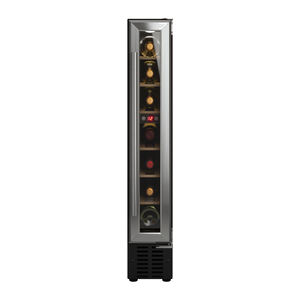

With our slim line 150mm Wine Cooler you can store up to 7 bottles of your favourite wine and the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
