H870xW595xD570 Under Counter Wine Cooler
WRWC60SS

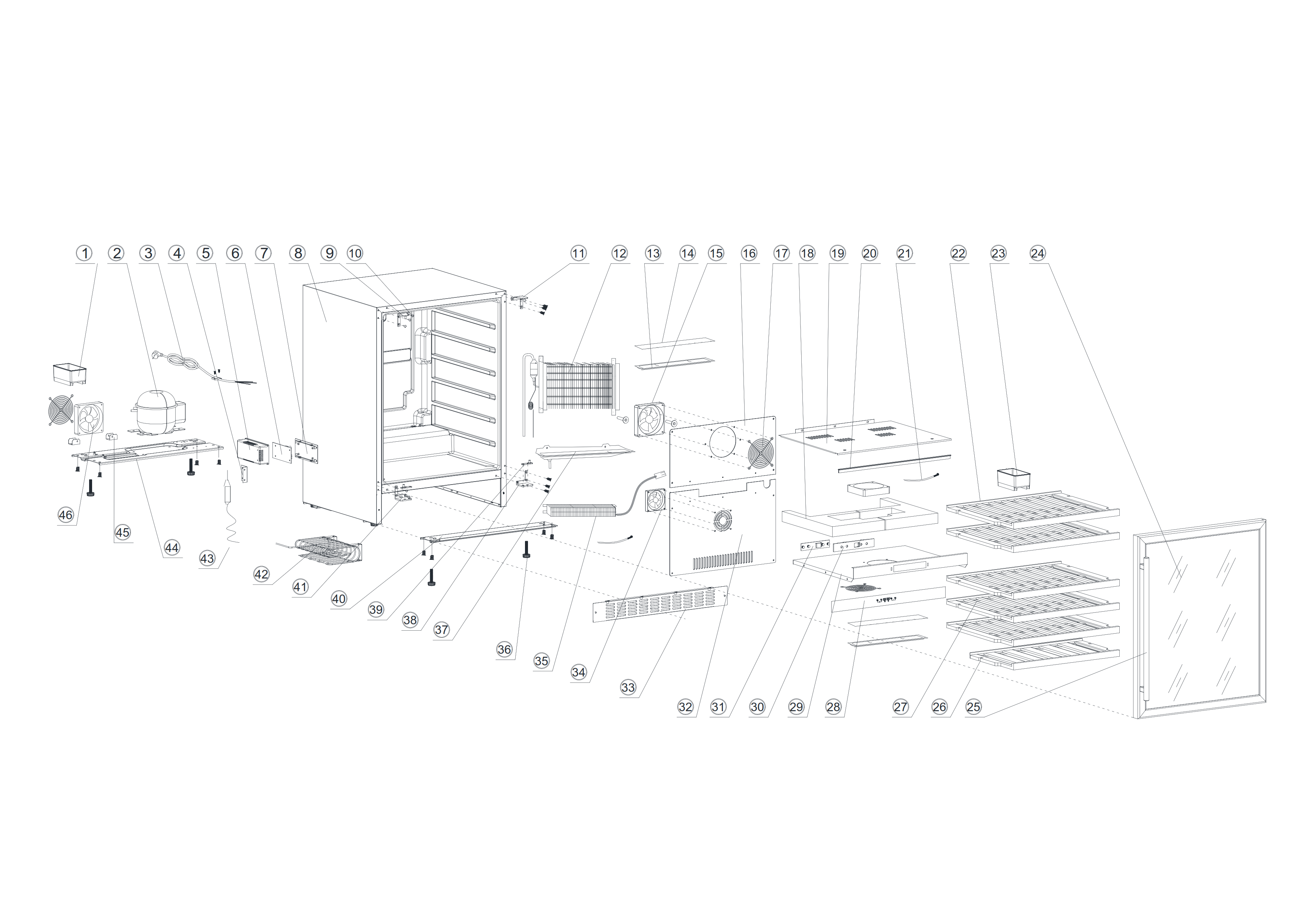

Drawing 1
Drawing 1 | Item# | Part Details | Availability | £ | |
|---|---|---|---|---|
| Drawing 1 | ||||
| 12970000000431
INSTALLATION KIT | Not Available | |||
| A00 | 12270000008481
ASS'Y CAVITY | Not Available | ||
| B01 | 12270000011017
BASE PLATE | Not Available | ||
| B06 | 12970000000711
SLIPPERY ORBIT (CHECK WITH JHJ BEFORE ORDER) | Not Available | ||
| C00 | 12170000010366
ASS'Y CONTROL PANEL | Not Available | ||
| C56 | 12970000000911
BALANCE BLOCK | Not Available | ||
| D00 | 12270000A70707
DOOR ASSY | Low Stock | 22.99 | |
| E16 | 17470000000121
POWER CORD | Not Available | ||
| E26 | 11201007000351
TEMPERATURE SENSOR | In Stock | 14.99 | |
| E49 | 17470000001494
THERMOSTAT | In Stock | 17.99 | |
| G03 | 17470000003035
METAL HEATER | In Stock | 18.99 | |
| G09 | 12270000009801
HEAT INSULATOR | Not Available | ||
| L14 | 17470000003037
WIRE HARNESS | Not Available | ||
| T10 | 12270000009802
HEAT INSULATOR | Not Available | ||
| W00 | 17470000002719
ASS'Y FAN | In Stock | 21.99 | |
| Z07 | 12970000000037
WIRE SUPPORTER | Not Available | ||
| Z24 | 12270000009797
OUTER CASE | Not Available | ||
| Z41 | 12270000008478
FRONT PLATE BRKT | Not Available | ||
| Z42 | 12270000000082
METAL BRKT | Not Available | ||
| 1 | 3.02.01.0264
WATER TANK | Low Stock | 5.99 | |
| 2 | 3.02.06.0270
COMPRESSOR | Not Available | ||
| 3 | 3.02.05.0040
POWER CORD | Low Stock | 6.99 | |
| 4 | 3.02.08.0980
PCB BRACKET | Not Available | ||
| 5 | 3.02.01.0835
PCB BOX | Not Available | ||
| 6 | 3.02.05.0381
POWER PCB | Not Available | ||
| 7 | 3.02.01.0262
PCB BASE | Low Stock | 5.99 | |
| 8 | 2.02.01.0085
CABINET | Not Available | ||
| 9 | 3.02.02.0104
LF UPPER HINGE | Low Stock | 6.99 | |
| 10 | 3.02.07.0018
SCREW | Not Available | ||
| 11 | 3.02.02.0101
RT UPPER HINGE | In Stock | 6.99 | |
| 12 | 3.02.06.0298
EVAPORATOR | Low Stock | 69.99 | |
| 13 | 3.02.01.0864
LAMP COVER | In Stock | Contact Us | |
| 14 | 3.02.05.0096
LAMP PCB | In Stock | 4.99 | |
| 15 | 3.02.05.0179
INNER FAN | In Stock | 19.99 | |
| 16 | 3.02.08.0456
UPPER AIR DUCT | Not Available | ||
| 17 | 3.02.02.0090
FAN GUARD | In Stock | 10.99 | |
| 18 | 3.02.03.0040
SPACER POLYFOAM | Not Available | ||
| 19 | 3.02.08.0193
SPACER COVER | Not Available | ||
| 20 | 3.02.01.0267
SPACER FIXED STRIP | Not Available | ||
| 21 | 3.02.05.0100
SENSOR | In Stock | 10.99 | |
| 22 | 3.02.02.0991
TOP SHELF | In Stock | 14.99 | |
| 23 | 3.02.01.0913
WATER DRIPTRAY | Low Stock | 12.99 | |
| 24 | 3.02.09.0303
GLASS DOOR | Low Stock | 89.99 | |
| 25 | 3.02.02.0273
S/SHANDLE | Low Stock | 14.99 | |
| 26 | 3.02.02.0690
BOTTOM SHELF | In Stock | 12.99 | |
| 27 | 3.02.02.0991
MIDDLE SHELF | In Stock | 14.99 | |
| 28 | 3.02.03.3050
CONTROL PANEL STICKER | Low Stock | 1.99 | |
| 29 | 3.02.08.0192
SPACER BASE | Not Available | ||
| 30 | 3.02.01.0236
CONTROL PCB SUPPORTER | Not Available | ||
| 31 | 3.02.05.0336
CONTROL PCB | In Stock | 24.99 | |
| 32 | 3.02.08.0019
LOWER AIR DUCT | Not Available | ||
| 33 | 3.02.08.2754
BASE GRILLE | In Stock | 19.50 | |
| 34 | 3.01.05.0189
SMALL INTERIOR FAN | Low Stock | 19.99 | |
| 35 | 3.02.05.0045
PTC HEATING | Low Stock | 32.99 | |
Functions
- Height Adjustable Feet
- Reversible Door
- LED Lighting
- LED Temperature Display
Technical Specifications
Energy Rating
C
C
Display Type
LED
LED
Temperature Controls
Touch Control
Touch Control
Interior Light
LED
LED
Shelf Type
Wooden
Wooden
Adjustable Shelves
Yes
Yes
Bottle Capacity
46
46
Temperature Range
5 - 22°C
5 - 22°C
Dimensions Unpacked
595x570x870mm
595x570x870mm
Dimensions Packed
660x625x930mm
660x625x930mm
Reversible Door
Yes
Yes
Weight Packed
50kg
50kg
Weight Unpacked
45kg
45kg
Noise Level
44dB
44dB
Connectivity Type
Cable with Plug
Cable with Plug
Description

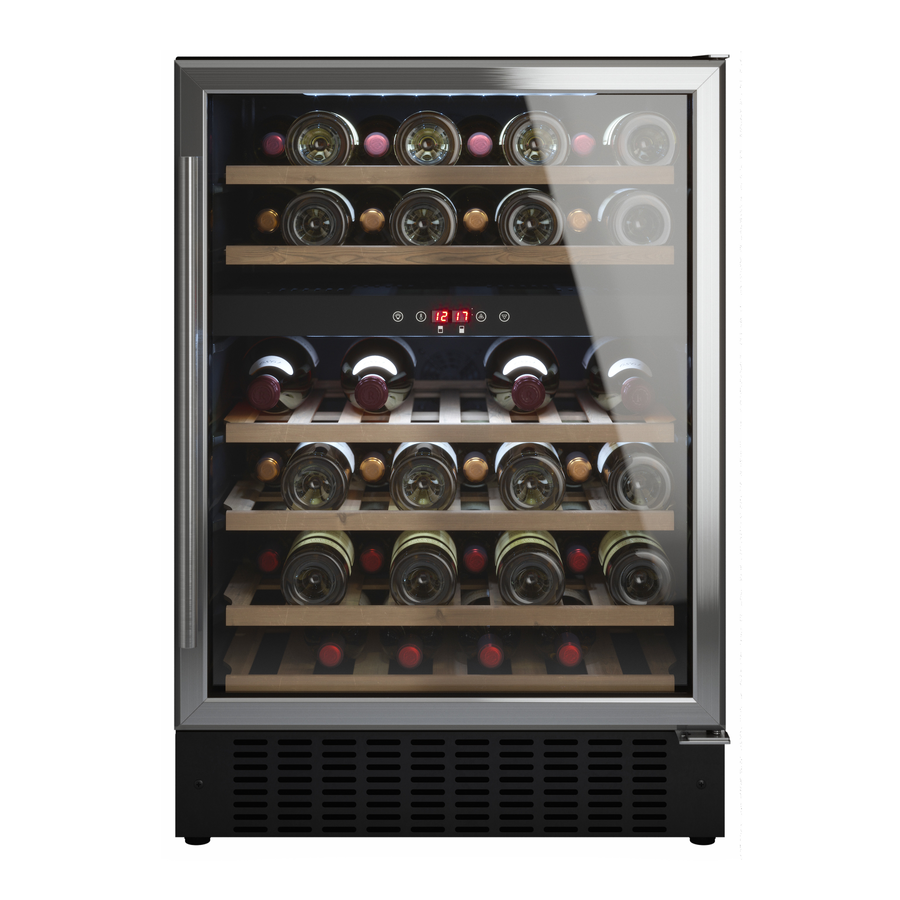

With our larger capacity 600mm Wine Cooler you can store up to 46 bottles of your favourite wine and you have the ability to easily choose your desired bottle with the internal LED illumination. The wine cooler has a digital control and LED display with operating temperatures between 5 - 22°C so you can select the perfect temperature for your chosen wine.
